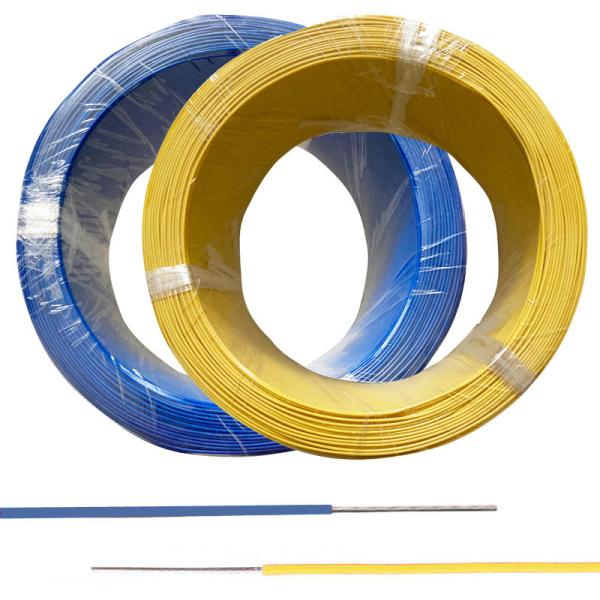

Stranded FEP PFA ETFE PTFE Insulated Wire High Temp Resistant

Name: Stranded FEP PFA ETFE PTFE Insulated Wire High Temp Resistant
Brand: SANCO
Price: 1 USD

Wholesale Stranded FEP PFA ETFE PTFE Insulated Wire High Temp Resistant from china suppliers

Brand Name : SANCO

Model Number : AF-200, AFK-250, AFR-250

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulation : FEP, ETFE, PFA, PTFE Insulated

Working temperature : -65~+250℃, -65 ~+200°C

Features : High Temperature Resistance

Available Color : White, Yellow, Purple, Green, Black, Gray, Blue, Red

Core Number : Single Core or Multi Cores

Gauge : 10AWG ~ 28AWG...

Conductor Material : Silver Plated Copper / Tinned Plated Copper

Rated voltage : AC 220V or 600V

Customized product : Yes

Contact Now

High-Temp Resistant Stranded FEP PFA ETFE PTFE Insulated Wire

Applications of High temperature wires

1. Aviation Wiring

2. Aerospace Wiring

3. Electronics Wiring

4. Medical Wiring

5. Appliance Wiring

6. Lighting Industry

7. Military Applications

8. Oil and Gas Industry Applications

9.Chemical Industry Applications

Wire Gauge (AWG)	Section area (mm2)	Conductor construction piece/diameter (mm)	Insulation thickness (mm)	OD (mm)	Max. Conductor resistance at 20℃ (Ω/Km)	Packing length (m)
10awg	5mm2	37x0.43mm	0.33mm	3.67	3.546	305
12awg	3mm2	19x0.49mm	0.33mm	3.11	5.64	305
14awg	2mm2	19x0.37mm	0.33mm	2.51	8.96	305
16awg	1.2mm2	19x0.3mm	0.33mm	2.16	14.6	305
17awg		19x0.26mm	0.33mm	1.96	18.3	305
18awg	1mm2	19x0.23mm	0.33mm	1.81	23.2	305
20awg	0.5mm2	19x0.2mm	0.33mm	1.61	36.7	305
20awg	0.5mm2	1x0.8mm	0.33mm	1.46	35.2	305
22awg	0.3mm2	19x0.16mm	0.33mm	1.46	59.4	610
22awg	0.3mm2	1x0.65mm	0.33mm	1.31	56.4	610
24awg	0.2mm2	7x0.2mm	0.33mm	1.26	94.2	610
24awg	0.2mm2	1x0.5mm	0.33mm	1.16	89.3	610
26awg	0.12mm2	7x0.16mm	0.33mm	1.14	150	610
26awg	0.12mm2	1x0.4mm	0.33mm	1.06	143	610
28awg	0.08mm2	7x0.12mm	0.33mm	1.02	239	610
28awg	0.08mm2	1x0.32mm	0.33mm	0.98	227	610
30awg	0.06mm2	7x0.1mm	0.33mm	0.96	381	610
30awg	0.06mm2	1x0.254mm	0.33mm	0.914	361	610
32awg	0.035mm2	7x0.08mm	0.41mm	1.06	664.8	610
32awg	0.035mm2	1x0.2mm	0.41mm	1.02	588.3	610

Stranded FEP PFA ETFE PTFE Insulated Wire High Temp Resistant
