600V PUR Shielded Robotic Towline Cable Bending Resistant

  • 1
  • 2

Brand Name : SANCO

Model Number : Robotic cable

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 100000M/Per Month

Delivery Time : 5~10days

Packaging Details : Cable tray or Packing in roll with carton box

Insulated : TPE Insulation or Special PVC

Conductor : Stranded Bare Copper

Features : High Flexible, Oil and Abrasion Resistant, Bending Resistant

Rated voltage : 300/300V or 600V

Working temperature : -20℃ to +105℃

Core Number : 3 Cores 4 Cores, 5 Cores, 6 Cores, 7 Cores ...

Sheath Color : Black or As per customer's request

Service : OEM ODM Accept

Customized Wire : As per sample or drawing

Sample : Free if available in warehouse

Contact Now

Bending Resistant PUR Sheath Shielded TRVVP Robot Towline Cable

Application

Mainly used in CNC robotic system, industrial automation and other equipment which need reciprocating motion of the drag chain for a long time.

About Robtic Cable

1. More than 20 million bending lif
2. High flexibility, wear resistance, drag resistance, oil resistance
3. Easy to cut wire, easy to peel
4. Flame retardant, small bending radius
5. Can be twisted, every 0.5 meters cable can be twisted ±180°

600V PUR Shielded Robotic Towline Cable Bending Resistant

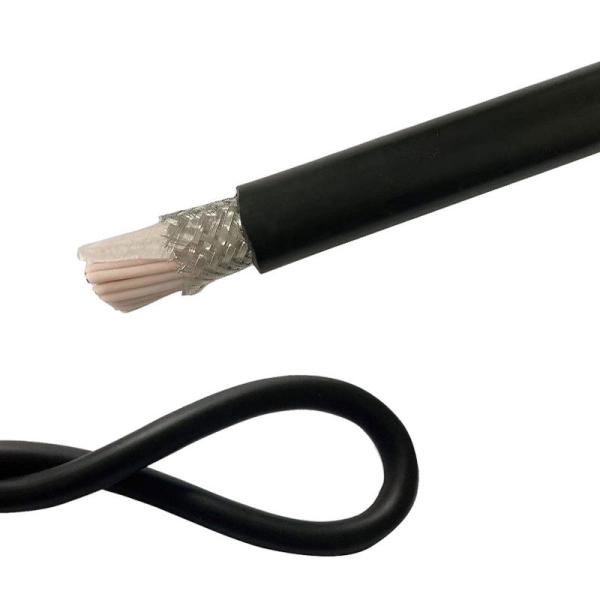

Structure

1. Multi-strand bare copper conductor with high bending strength

2. TPE or Special PVC Insulated

3. Black insulated wire core by numbered (color core also available)

4. Covered in non-woven fabric

5. PUR or Special PVC Sheath

600V PUR Shielded Robotic Towline Cable Bending Resistant

Product number Specification
(mm2)		 Conductor structure
(mm)		 Insulation OD
(mm)		 Reference cable OD
(mm)		 20℃ Max. conductor DC resistance
Ω/km
FLEX2000-SZ60.03.05.PUR 3x0.5mm2(20AWG) 105/0.08 1.75 6 37.4
FLEX2000-SZ60.04.05.PUR 4x0.5mm2(20AWG) 105/0.08 1.75 6.5 37.4
FLEX2000-SZ60.06.05.PUR 6x0.5mm2(20AWG) 105/0.08 1.75 7.6 37.4
FLEX2000-SZ60.08.05.PUR 8x0.5mm2(20AWG) 105/0.08 1.75 8.9 37.4
FLEX2000-SZ60.09.05.PUR 9x0.5mm2(20AWG) 105/0.08 1.75 10 37.4
FLEX2000-SZ60.12.05.PUR 12x0.5mm2(20AWG) 105/0.08 1.75 12.1 37.4
FLEX2000-SZ60.03.075.PUR 3x0.75mm2(19AWG) 154/0.08 2 6.6 29.5
FLEX2000-SZ60.04.075.PUR 4x0.75mm2(19AWG) 154/0.08 2 7.1 29.5
FLEX2000-SZ60.06.075.PUR 6x0.75mm2(19AWG) 154/0.08 2 8.4 29.5
FLEX2000-SZ60.08.075.PUR 8x0.75mm2(19AWG) 154/0.08 2 10 29.5
FLEX2000-SZ60.09.075.PUR 9x0.75mm2(19AWG) 154/0.08 2 11 29.5
FLEX2000-SZ60.12.075.PUR 12x0.75mm2(19AWG) 154/0.08 2 13.3 29.5
FLEX2000-SZ60.03.10.PUR 3x1.0mm2(18AWG) 210/0.08 2.3 7.3 23.5
FLEX2000-SZ60.04.10.PUR 4x1.0mm2(18AWG) 210/0.08 2.3 8 23.5
FLEX2000-SZ60.06.10.PUR 6x1.0mm2(18AWG) 210/0.08 2.3 9.5 23.5
FLEX2000-SZ60.08.10.PUR 8x1.0mm2(18AWG) 210/0.08 2.3 11.4 23.5
FLEX2000-SZ60.09.10.PUR 9x1.0mm2(18AWG) 210/0.08 2.3 12.7 23.5
FLEX2000-SZ60.12.10.PUR 12x1.0mm2(18AWG) 210/0.08 2.3 12.9 23.5
FLEX2000-SZ60.03.15.PUR 3x1.5mm2(16AWG) 301/0.08 2.7 8.1 14.6
FLEX2000-SZ60.04.15.PUR 4x1.5mm2(16AWG) 301/0.08 2.7 8.9 14.6
FLEX2000-SZ60.06.15.PUR 6x1.5mm2(16AWG) 301/0.08 2.7 10.8 14.6
FLEX2000-SZ60.08.15.PUR 8x1.5mm2(16AWG) 301/0.08 2.7 13.1 14.6
FLEX2000-SZ60.09.15.PUR 9x1.5mm2(16AWG) 301/0.08 2.7 14.3 14.6
FLEX2000-SZ60.12.15.PUR 12x1.5mm2(16AWG) 301/0.08 2.7 17.9 14.6
FLEX2000-SZ60.03.25.PUR 3x2.5mm2(14AWG) 504/0.08 3.3 9.7 9.15
FLEX2000-SZ60.04.25.PUR 4x2.5mm2(14AWG) 504/0.08 3.3 10.5 9.15
FLEX2000-SZ60.06.25.PUR 6x2.5mm2(14AWG) 504/0.08 3.3 12.7 9.15
FLEX2000-SZ60.08.25.PUR 8x2.5mm2(14AWG) 504/0.08 3.3 15.5 9.15
FLEX2000-SZ60.09.25.PUR 9x2.5mm2(14AWG) 504/0.08 3.3 16.9 9.15
FLEX2000-SZ60.12.25.PUR 12x2.5mm2(14AWG) 504/0.08 3.3 21.3 9.15
FLEX2000-SZ60.03.40.PUR 3x4mm2(12AWG) 518/0.10 4 11.2 5.75
FLEX2000-SZ60.04.40.PUR 4x4mm2(12AWG) 518/0.10 4 12.5 5.75
FLEX2000-SZ60.06.40.PUR 6x4mm2(12AWG) 518/0.10 4 15.4 5.75
FLEX2000-SZ60.08.40.PUR 8x4mm2(12AWG) 518/0.10 4 18.5 5.75
FLEX2000-SZ60.09.40.PUR 9x4mm2(12AWG) 518/0.10 4 20.5 5.75
FLEX2000-SZ60.12.40.PUR 12x4mm2(12AWG) 518/0.10 4 26 5.75

600V PUR Shielded Robotic Towline Cable Bending Resistant

600V PUR Shielded Robotic Towline Cable Bending Resistant

600V PUR Shielded Robotic Towline Cable Bending Resistant
