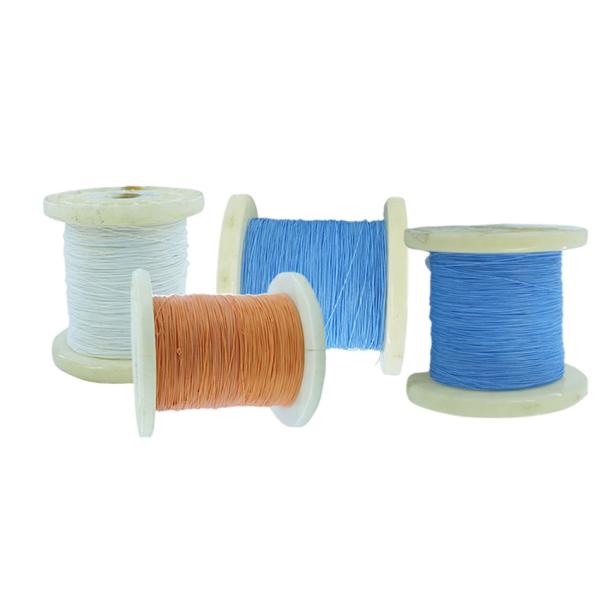

28awg PFA Coated Nickel Coated Copper Wire Heat Resistant

  • 1
  • 2

Brand Name : SANCO

Model Number : AFK-250

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulation : PFA Insulated

Conductor : Nickel Plated

Features : Heat Resistant

Rated voltage : 110V, 250V and 600V

Shielding : Optional

Wire gauge : 28awg etc.

Color : White,blue,red,black,yellow,green,transparent

Service : OEM ODM Accept

Customized product : Available as per technical data

After-sales : Lifelong maintenance

Contact Now

28awg PFA Coated Heat Resistant Nickel Plated high temperature Wire Supplier

About PFA wire

1. PFA wire can be rated up to 250°C, thus making it an excellent choice for high temperature applications. Along with excellent temperature ratings, PFA has outstanding resistance to chemicals.
2. PFA wire has superior mechanical strength at high temperatures as compared to FEP insulation wire,and also remains flexible at low temperatures

Applications

Used for Household appliances,Precision equipment,PTC thermistors,Temperature sensor,automotive internal connection, electronic and electrical appliances etc.

Properties:

1. Rated voltage : 110V, 250V and 600V
2. Max. working temperature of the wire core: 200℃ and 250℃;
3. In the ambient temperature not less than -65℃ conditions still maintain the winding
4. Wire relative humidity: 95%±3.
5. Test voltage (AC 50Hz) 2000V/5min
6. Insulation resistance is greater than 1×103MΩ

28awg PFA Coated Nickel Coated Copper Wire Heat Resistant

Cross section area
mm2		 Conductor structure Nom. Diameter
mm		 Max. DC resistance
ohm/km		 Estimate Weight
kg/km
0.035 7/0.08 0.53 570 0.8
0.055 7/0.10 0.6 340 1.1
0.08 7/0.12 0.66 210 1.48
0.095 19/0.08 0.69 210 1.75
0.14 7/0.16 0.8 130 2
0.15 19/0.10 0.8 130 2.2
0.22 7/0.20 0.91 80 3
0.2 19/0.12 0.91 81 3
0.37 7/0.26 1.05 52 4.4
0.38 19/0.16 1.1 50 4.6
0.5 19/0.18 1.2 37 5.72
0.62 19/0.20 1.33 31 7
0.75 19/0.23 1.48 23 9.07

28awg PFA Coated Nickel Coated Copper Wire Heat Resistant


28awg PFA Coated Nickel Coated Copper Wire Heat Resistant28awg PFA Coated Nickel Coated Copper Wire Heat Resistant28awg PFA Coated Nickel Coated Copper Wire Heat Resistant28awg PFA Coated Nickel Coated Copper Wire Heat Resistant28awg PFA Coated Nickel Coated Copper Wire Heat Resistant28awg PFA Coated Nickel Coated Copper Wire Heat Resistant
