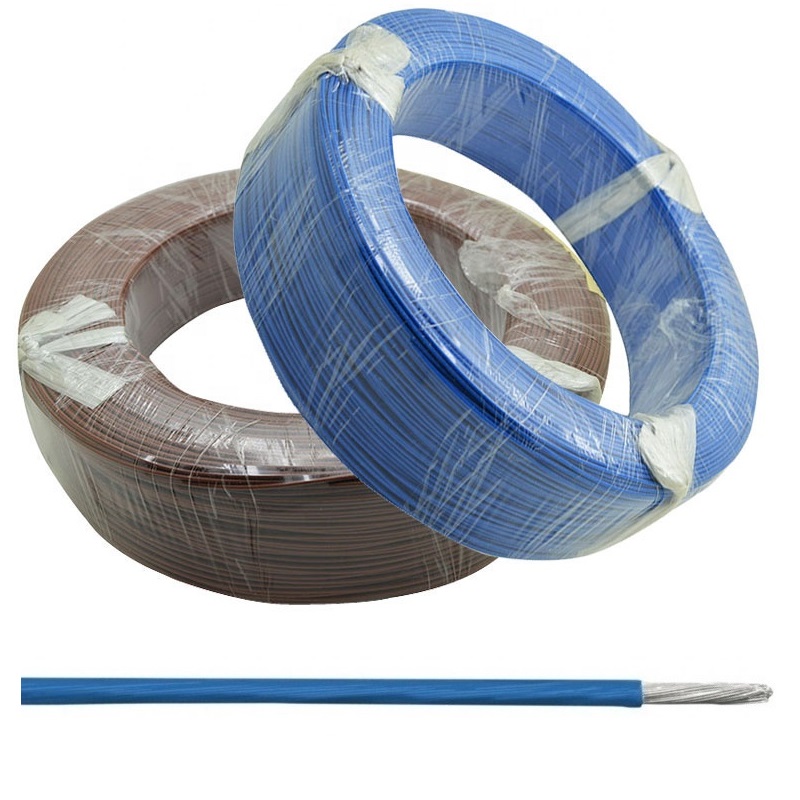

Tinned Copper FEP Insulated Wire FEP Hook Up Wire 600V With 9 Basic Colors

  • 1
  • 2

Brand Name : SANCO

Model Number : AF-200

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulated : FEP high temperature

Low temperature resistant : -65℃

Features : High Temperature resistance

Color : 9 Basic colors（Customizable）

Service : OEM ODM Accept

Wire gauge : 32AWG~1/0AWG,stranded or solid.

Conductor Material : Tinned or bare copper wire

Voltage grade : AC 600V

Shielding : Tinned copper wire

Customized wire : Available as per technical data

Contact Now

Fep Hook Up Wires,High Temperature 600V high temperature Heating Wires

FEP hook up wire is a type of fluoroplastic insulated wire,It has very similar properties to PTFE and PFA such as low friction and non-reactivity to chemicals.

Type
FEP insulation Silver plated copper conductor lead wire
FEP insulation Tinned copper conductor lead wire
FEP insulation Tinned or silver coated copper conductor shielding lead wire
FEP insulation Tinned or silver coated stranded copper twisted lead wire
FEP insulation Tinned or silver coated stranded copper twisted shield lead wire


Applications of FEP hook up wire

1. Aviation Wiring
2. Aerospace Wiring
3. Electronics Wiring
4. Medical Wiring
5. Appliance Wiring
6. Lighting Industry
7. Military Applications
8. Oil and Gas Industry Applications
9. Chemical Industry Applications

Properties of FEP hook up wire

1. Insulation:FEP insulated
2 .Temperature range:-65~200℃
3. Conductor:Tinned or Silver plated copper
4. 36AWG~10AWG,stranded or solid conductor.
5. Rated voltage:300V/600V

Tinned Copper FEP Insulated Wire FEP Hook Up Wire 600V With 9 Basic Colors

Wire gauge
(AWG)		 Section area
(mm2)		 Conductor construction
piece/diameter
(mm)		 Insulation thickness
(mm)		 Outer diameter
(mm)		 Max. Conductor resistance at 20℃
(Ω/Km)		 Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg 19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

Noted:Specification and core no. are not limited to above regulation,they could be customized.

Tinned Copper FEP Insulated Wire FEP Hook Up Wire 600V With 9 Basic Colors

Tinned Copper FEP Insulated Wire FEP Hook Up Wire 600V With 9 Basic Colors
