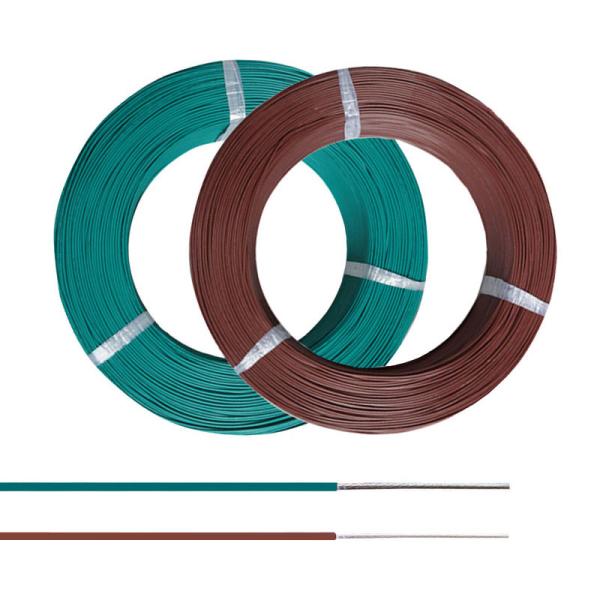

600V FEP Insulated Tinned Plated Copper High Temperature Lead Wire
Application:
FEP High Temperature Lead Wire is used for Connecting household appliances, Home appliances, Temperature sensors, Lighting lamps (cold light source), the motors, Automotive interior cables, Electronic appliance with the rated ac voltage of 600V and below.
Features:
1. Low frequency loss
2. No moisture absorption
3. Excellent flame resistance
4. High resistance of humidity
4. Aging resistance
5. Anti-interference
6. Corrosion resistant
7. Long service life
Properties:
1. Rated voltage: 600V or Below
2. Working temperature: -65℃~+200℃
3. Conductor: Tinned Plated Copper Stranded Conductor
4. Insulation: FEP Insulation
6. Wire Gauge: 10AWG~22AWG 24AWG, 26AWG, 28AWG, 30AWG, 32AWG...
7. Available Colors: Brown, White, Blue, Red, Black, Yellow, Green...
| Type |
| FEP insulation Silver plated copper conductor lead wire |
| FEP insulation Tinned copper conductor lead wire |
| FEP insulation Tinned or silver plated copper conductor shielding lead wire |
| FEP insulation Tinned or silver plated stranded copper twisted lead wire |
| FEP insulation Tinned or silver plated stranded copper twisted shield lead wire |
Wire gauge
(AWG) | Section area
(mm2) | Conductor construction
piece/diameter
(mm) | Insulation thickness
(mm) | Outer diameter
(mm) | Max. Conductor resistance at 20℃
(Ω/Km) | Packing length
(m) |
| 10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
| 12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
| 14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
| 16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
| 17awg | | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 |
| 18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
| 20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
| 1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 |
| 22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
| 1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 |
| 24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
| 1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 |
| 26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
| 1x0.4mm | 0.33mm | 1.06 | 143 | 610 |
| 28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
| 1x0.32mm | 0.33mm | 0.98 | 227 | 610 |
| 30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
| 1x0.254mm | 0.33mm | 0.914 | 361 | 610 |
| 32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
| 1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
Noted: Specification and core no. are not limited to above regulation, they could be customized.
