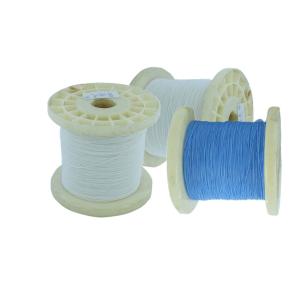

0.15mm Silver Plated Copper Wire,250 Degree PTFE Insulated Wire
About PTFE Wire:
PTFEInsulated wire products are highly recommended for miniature cable applications because of their superior thermal and electrical properties. PTFE wire is commonly used in industries lie military, aerospace, and oil & gas.
1. High temperature resistance
2. Cold resistance
3. Good softness
4. Aging resistance
5. Anti-interference
6. Easy insulation stripping
7. Easy welding conductor
8. Small diameter
9. Especially suitable for frequent bending occasions
Application:
PTFE insulated wire can be mainly used for all kinds of aircraft, airships, armored fighting vehicles, ships and other purposes of internal electrical equipment and instrument circuit connection under high temperature environment.
Properties:
1. Rated voltage: 125V, 300V, 600V
2. Working temperature: -60 ~ +250 ° C, short-term temperature can be 350 ° C
3. Conductor: bare copper wire, silver plated copper wire or nickel-plated copper wire
4. Insulation: PTFE film wrapped insulation or add braided shield and sheath.
5. Color: Red,Yellow,Green,Brown,Transparent,Grey,Blue,Orange,White,Black etc.
| Wire gauge | Cross-section | Conductor | Max.OD of wire
mm | Reference weight
kg/km |
| AF | AFP | AFPF | AF | AFP | AFPF |
| AF-1 | AFP-1 | AFRPF-200 | AF-1 | AFP-1 | AFRPF-200 |
| AFR-200 | AFRP-200 | AFRPF-250 | AFR-200 | AFRP-200 | AFRPF-250 |
| AWG | mm2 | mm | AFR-250 | AFRP-250 | | AFR-250 | AFRP-250 |
| 36AWG | 0.013 | 7/0.05 | 0.57 | 0.97 | 1.45 | 0.44 | 1.89 | 2.93 |
| 32AWG | 0.035 | 7/0.08 | 0.67 | 1.15 | 1.55 | 0.73 | 2.39 | 3.52 |
| - | 0.05 | 10/0.08 | 0.72 | 1.28 | 1.68 | 0.91 | 2.67 | 3.85 |
| - | 0.07 | 14/0.08 | 0.75 | 1.3 | 1.7 | 1.16 | 3.05 | 4.29 |
| - | 0.1 | 21/0.08 | 0.85 | 1.4 | 1.8 | 1.57 | 3.63 | 4.95 |
| 26AWG | 0.12 | 24/0.08 | 0.85 | 1.5 | 1.9 | 1.66 | 4.18 | 5.45 |
| - | 0.14/0.15 | 30/0.08 | 0.9 | 1.55 | 1.95 | 2.07 | 4.32 | 5.72 |
| - | 0.2 | 42/0.08 | 1 | 1.65 | 2 | 2.72 | 5.17 | 6.67 |
| - | 0.25 | 56/0.08 | 1.1 | 1.7 | 2.05 | 3.47 | 6.13 | 7.73 |
| 22AWG | 0.3 | 62/0.08 | 1.18 | 1.75 | 2.25 | 4.2 | 7.55 | 9.3 |
| - | 0.35 | 75/0.08 | 1.2 | 1.8 | 2.35 | 4.7 | 7.74 | 10.2 |
| 20AWG | 0.5 | 63/0.1 | 1.45 | 2.05 | 2.4 | 5.36 | 8.54 | 11 |
| - | 0.75/0.80 | 91/0.1 | 1.69 | 2.39 | / | 8.19 | 11.9 | / |
| 18AWG | 1 | 56/0.15 | 1.95 | 2.5 | / | 10.9 | 15.2 | / |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
