ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire

  • 1
  • 2
  • 3

Brand Name : SANCO

Model Number : FF40-1

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Application : Internal Wiring

Insulation materials : ETFE insulated

Operating temperature : -65~+150℃

Features : High Temperature resistance

Conductor materials : Tinned copper

Standard Color : 10 Colors or as requirements

Wire gauge : 30 AWG ~10 AWG

Voltage Rating : AC 600V

Customized wire : Available as per technical datasheet

After-sales : Lifelong maintenance

Contact Now

ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire

About ETFE wire

ETFE is the strongest fluoroplastic. While maintaining the good heat resistance, chemical resistance and electrical insulation properties of PTFE, it has greatly improved radiation resistance and mechanical properties. The tensile strength can reach 50MPa, which is close to poly 2 times that of tetrafluoroethylene

Application:The ETFE insulated wire suitable for wiring in electronic equipment which has a tendency to build up and retain heat, and in environments where they will be exposed to oil or chemicals, such as in chemical plants or for application in industrial robots

Properties

1. Nominal Voltage: 600V
2. Temperature Range: -65ºC to 150ºC

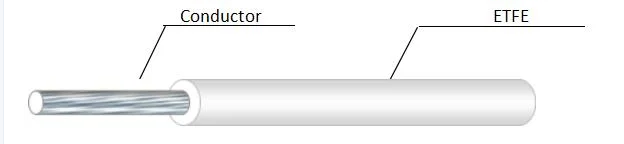

3. Conductor: Tinned copper
4. Insulator: ETFE Insulated
5. O.D.Tolerance :±0.10mm
6. Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

ETFE Hook Up Wire 20 22 Gauge Single Core Electric Wire

Wire gauge Section area
(mm2)		 Conductor construction
piece/diameter
(mm)		 Insulation thickness
(mm)		 Reference OD
(mm)		 Max. Conductor resistance at 20℃
(Ω/Km)
28 awg 0.08mm2 7/0.12 0.15 0.66 239
26 awg 0.14mm2 7/0.16 0.15 0.78 239
24 awg 0.2mm2 7/0.2 0.15 0.9 150
22 awg 0.4/0.3mm2 19/0.16 0.15 1.1 94.2
20 awg 0.6/0.5mm2 19/0.2 0.15 1.3 32.4
18 awg 1mm2 19/0.26 0.2 1.7 20.4
16 awg 1.2mm2 19/0.28 0.2 1.8 16.6
14 awg 2mm2 19/0.36 0.33 2.46 10
12 awg 3mm2 37/0.32 0.33 2.9 6.63
10 awg 5mm2 37/0.4 0.33 3.46 4.13

Noted:Specification and core no. are not limited to above regulation,they could be customized.
